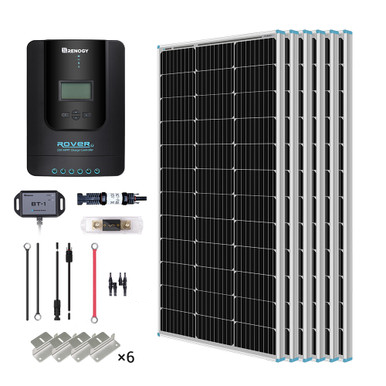

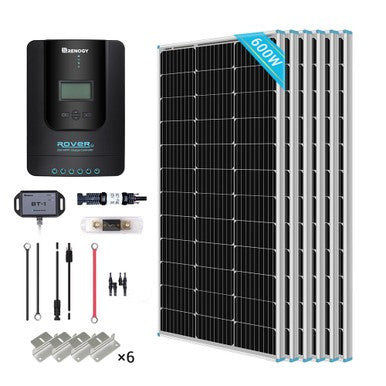

600W 12V/24V Monocrystalline Solar Premium Kit w/Rover 60A Charger Controller
600W 12V/24V Monocrystalline Solar Premium Kit w/Rover 60A Charger Controller - Compact Design Rigid Panel está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
![](http://shopify-uk.renogy.cn/cdn/shop/files/RNG-KIT-PREMIUM600D-RVR60__03948.1727684814.386.513.png?v=1749800490&width=100")
Description
Take command of the off-grid solar world with the Renogy 600 Watt Premium Kit. Using our most efficient products we have put together a kit that can best suit your solar needs while on the go. This kit includes the new 100W Mono Solar Panel which is not only sleek in size, weight, and color but are made of the highest efficiency solar cells that Renogy has to offer.
The included Rover Li 60A MPPT Charge Controller features multiphase synchronous rectification and Maximum Power Point Tracking technologies, which increases charging efficiency. Our new Bluetooth module is also included which can be paired to the Renogy DC Home App. The Renogy DC Home App allows users to remotely monitor and change their photovoltaic system's parameters with a few simple swipes on their smartphone or tablet. For convenience, this kit also consists of six sets of mounting Z-Brackets, branch connectors, one 20ft 10AWG Solar Adaptor Kit, one 8ft 4AWG Tray Cable, and fusing components for protection of your controller and battery.

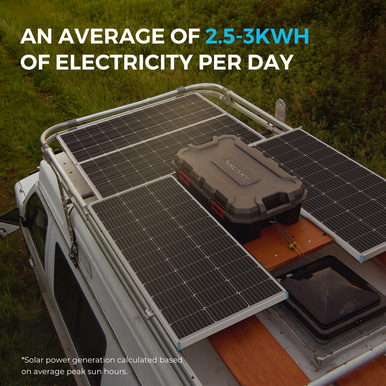

This Premium Kit is perfect for installation on an RV, boat, or camper. It can also be installed in a ground mount system next to an off-grid campsite, making it an ideal choice for many off-grid applications.
If you have any questions regarding this product, please submit a case.
Key Features
Efficient- Monocrystalline panels come with high-efficiency cells Cell efficiency: Regular Monocrystalline 21%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Rover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%

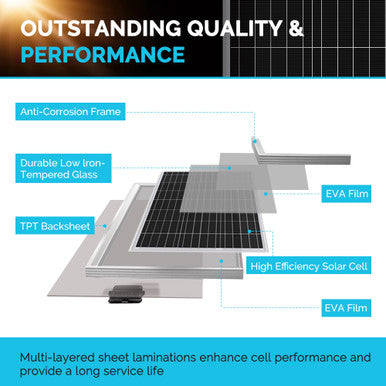

- Extra thick anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time

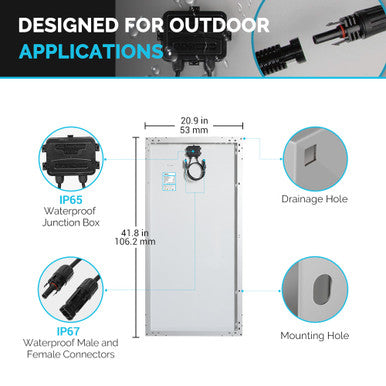

- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- RS-232 port compatible for extra features
- Compatible with Renogy Bluetooth Module and DC Home App for remote monitoring
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Comes equipped with an waterproof In-line fuse and ANL fuse components for protecting your charge controller and battery

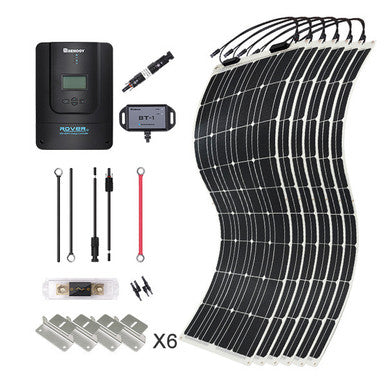

Package Includes
|
100W Compact Panel OR 100W Flexible Panel
6 x |
Rover Li 60A MPPT Charge Controller
1 x |
|
1 x |
(not included in ETFE Flexible panel kits)
6 x |
|
15A In-line Fuse and 60A ANL Fuse
1 x |
Renogy Solar Y Branch Connectors MMF+FFM Pair
1 x |
|
1 x |
1 x |
|

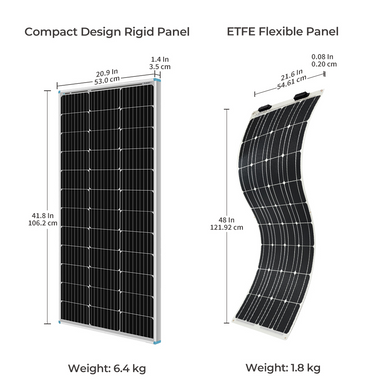

100W Compact Design Regid Panel (Optional) |
100W ETFE Flexible Panel (Optional) |
|---|---|
| Maximum Power at STC: 100W | Maximum Power: 100W |
| Maximum System Voltage:600V DC (UL) | Maximum System Voltage:600V DC |
| Open-Circuit Voltage (Voc): 24.3V | Open-Circuit Voltage (Voc): 22.5V |
| Short-Circuit Current (Isc): 5.21A | Short-Circuit Current (Isc): 5.75A |
| Optimum Operating Voltage (Vmp): 20.4V | Optimum Operating Voltage (Vmp): 18.9V |
| Optimum Operating Current (Imp): 4.91A | Optimum Operating Current (Imp): 5.29A |
| Weight: 14.1 lbs/6.4 kg | Weight: 4.2lbs (1.9kg) |
| Dimensions: 41.8 x 20.9 x1.4(106.17 x 53.09 x3.56 cm) | Dimensions: 48x21.5x0.08 In (121.92 x 54.61 x0.20 cm) |
| Renogy Solar Solar Y Branch Connectors MMF+FFM Pair | Renogy 15A In-line Fuse Holder w/Fuse |
|---|---|
| Withstanding voltage: 1000V DC(TUV), 600V(UL) | Rated Current: 15A |
| Protection Class: Class II | Rated Voltage: 1000 V DC |
| Protection Degree: IP67, mated | Contact Material: Copper, Silver Plated |
| Insulation Material: PC/PA | Replaceable Fuse: Cylindrical PV Fuse (10x38mm) |
| Temperature Range: -40°F to 194°F |

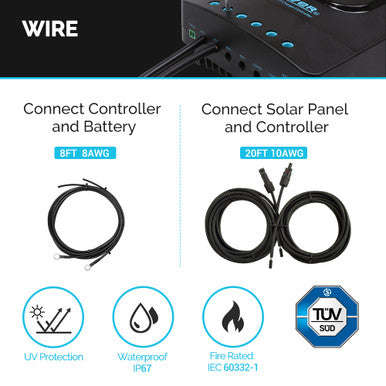

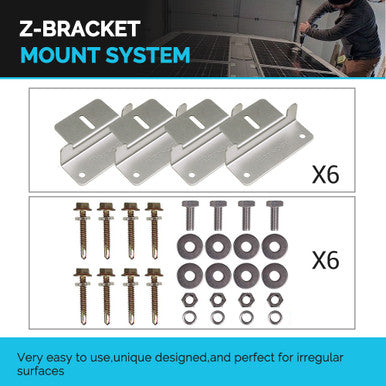

| Mounting Z Brackets (Set) | Renogy 8ft 4AWG Tray Cables (A pair) |
|---|---|
| Eight Long Cap Bolts and Four Short Bolts | Rating Voltage: 600/1000V |
| Four Spring Washers and Four Washers | Length: 8ft |
| Four Z Shape Solar Panel Brackets | AWG: 4 |
| Four Nuts | Temperature: -40°F to +185°F |
| Renogy 2ft 4AWG ANL Fuse Cable | ANL 60A Fuse Set |
|---|---|
| Length: 2ft | Current Rating: 60A |
| Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV | Voltage Rating: 72V |
| Temperature: -40°F to +194°F | Interrupt Capacity: 360A (48V) |
| Renogy 20ft 10AWG Solar Adaptor Kit (A pair) | BT-1 Bluetooth Module |
|---|---|
| Length: 20ft | Input Voltage: 5V |
| AWG: 10 | Communication Range: ≤82ft |
| Rating Voltage: 600/1000V | Compatibel Models: All Renogy Controllers with RJ12 port |
| Temperature: -40°F to +185°F | Operation Temperature: -20°C~85°C (-4°F to 185°F) |
| Rover Li 60A MPPT Solar Charge Controller | |
|---|---|
| Nominal Voltage: 12V/24V/36V/48V Auto Recognition | Rated Load Current:60A |
| Rated Load Current: 20A | Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C) | Self-Consumption: 0.7W-1.2W |
| Operating Temperature: -31 °F to 113 °F (-35 °C to 45 °C ) | Temperature Compensation: -3mV/°C/2V (default) |
| Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in) | Weight: 7.9lbs |
| Enclosure: IP32 | Terminals: 25mm2 4AWG |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
 |
|||
 |
|||
| Please click the links below to download the manuals: | |||
| 100W Compact Design Regid Panel | |||
| 100W ETFE Flexible Panel | |||
| BT-1 Bluetooth Module | |||
| 60A Rover Li Charge Controller | |||
| Mounting Z Brackets | |||
